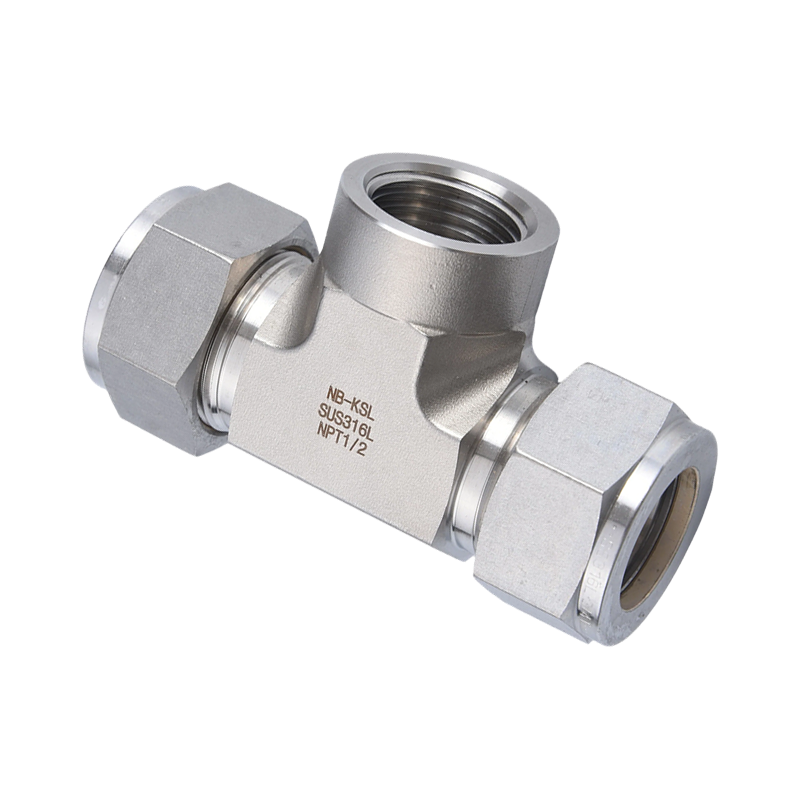

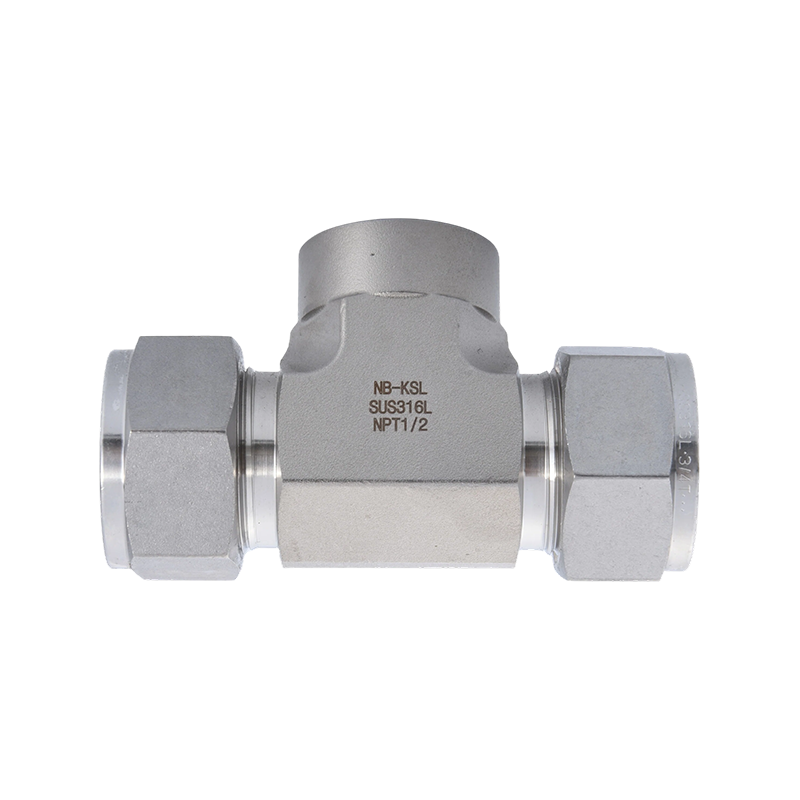

Kompresijski spoj od nehrđajućeg čelika 316L ogranak s unutarnjim navojem

Name: Kompresijski spoj od nehrđajućeg čelika 316L ogranak s unutarnjim navojem
Rating: 5 (99 reviews)

Kompresijski fiting od nehrđajućeg čelika 316L T-grana s unutarnjim navojem je cijevni fiting koji se koristi za spajanje tri cijevi. Njegova je struktura tipično T-konstrukcija, s glavnom cijevi ravnom vezom, a krajem ogranka pomoću sučelja s unutarnjim navojem, što omogućuje izravnu vezu s vanjskim navojnim spojnicama ili instrumentacijskom opremom. Tijelo T-kolice proizvedeno je upotrebom integralnog kovanja ili procesa precizne strojne obrade, što rezultira glatkim i ujednačenim unutarnjim kanalom protoka, što pomaže smanjiti otpor tekućine i gubitak tlaka. Glavna struktura uključuje dva ravna kraja i jedan kraj grane s unutarnjim navojem. Ovaj proizvod je prikladan za cijevi promjera od 1/8" do 2" (3 mm do 50 mm), s radnim tlakom do 6000 psi. Standardi za navoje uključuju serije NPT, BSPT, BSPP i ISO. Brtva je tvrda metalna brtva i može prenositi plinove, tekućine, paru, korozivne tekućine i medije visoke čistoće.

Kontaktirajte nas

PREV：Kompresivni spoj od nehrđajućeg čelika 316L bočna T-račva s unutarnjim navojem DALJE：Nema sljedećeg proizvoda

Opis
Kontaktirajte nas

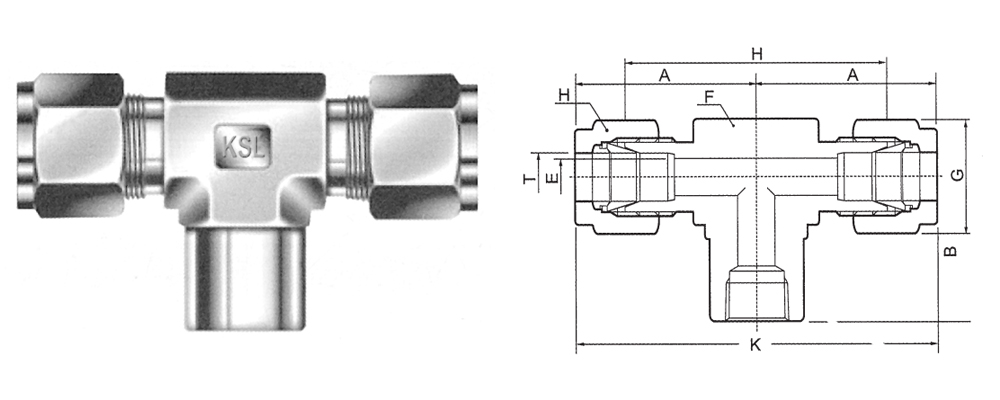

ŽENSKA GRANKA MAJICA

(METRIČKI)

KATALOG BROJ	T CIJEV VN.D.	PT-NPT MUŠKA CIJEV VEL	A	B	D	E	F	G	H	K
FBT-6-1	6	1/8	22.4	22.4	15.8	4.8	16	14	44.8	60.4
FBT-6-2	6	1/4	22.4	22.4	15.8	4.8	17.5	14	44.8	60.4
FBT-6-3	6	3/8	23.3	22.4	15.8	4.8	21	14	46.6	62.2
FBT-6-4	6	1/2	26.5	30	15.8	4.8	28	14	53	68.6
FBT-8-1	8	1/8	22.4	22.4	16.7	6.4	16	16	44.8	60.2
FBT-8-2	8	1/4	22.4	22.4	16.7	6.4	17.5	16	44.8	60.2
FBT-8-3	8	3/8	24.3	22.4	16.7	6.4	21	16	48.6	64
FBT-8-4	8	1/2	27.5	30	16.7	6.4	28	16	55	70.4
FBT-10-1	10	1/8	23.9	22.4	19.6	7.9	17.5	19	47.8	63
FBT-10-2	10	1/4	23.9	22.4	19.6	7.9	17.5	19	47.8	63
FBT-10-3	10	3/8	25.3	22.4	19.6	7.9	21	19	50.6	65.8
FBT-10-4	10	1/2	28.5	30	19.6	7.9	28	19	58	73.2
FBT-12-1	12	1/8	25.9	22.4	23.8	9.5	19	22	51.8	73.4
FBT-12-2	12	1/4	25.9	22.4	23.8	9.5	19	22	51.8	73.4
FBT-12-3	12	3/8	25.3	22.4	23.8	9.5	21	22	50.6	72.2
FBT-12-4	12	1/2	28.5	30	23.8	9.5	28	22	51.8	73.4
FBT-12-6	12	3/4	32.5	33	23.8	9.5	32	22	65	86.6
FBT-14-3	14	3/8	28	27	24.8	11.1	24	27	56	77.6
FBT-14-4	14	1/2	28.5	30	24.8	11.1	28	27	57	78.6
FBT-14-6	14	3/4	32.5	33	24.8	11.1	32	27	65	86.6
FBT-15-3	15	3/8	28	27	24.4	11.9	24	27	56	76.8
FBT-15-4	15	1/2	28.5	30	24.4	11.9	28	27	57	77.8
FBT-15-6	15	3/4	32.5	33	24.4	11.9	32	27	65	85.8
FBT-16-3	16	3/8	28	27	24.4	12.7	24	27	56	76.8
FBT-16-4	16	1/2	28.5	30	24.4	12.7	28	27	57	77.8
FBT-16-6	16	3/4	32.5	33	24.4	12.7	32	27	65	85.8
FBT-18-3	18	3/8	28.5	27	24.8	15.1	28	30	57	78.6
FBT-18-4	18	1/2	28.5	30	24.8	15.1	28	30	57	78.6
FBT-18-6	18	3/4	32.5	33	24.8	15.1	32	30	65	86.6
FBT-20-4	20	1/2	33.5	33	25.5	15.9	32	32	67	88
FBT-20-6	20	3/4	33.5	33	25.5	15.9	32	32	67	88
FBT-22-4	22	1/2	33.5	33	25.5	18.3	32	32	67	88
FBT-22-6	22	3/4	33.5	33	25.5	18.3	32	32	67	88
FBT-25-4	25	1/2	35	35	31.7	21.8	34.5	38	70	95.4
FBT-25-6	25	3/4	35	35	31.7	21.8	34.5	38	70	95.4

(RAZLOMAK)

FBT-02-1	1/4	1/8	22.4	22.4	15.8	4.8	16	14	44.8	60.4
FBT-02-2	1/4	1/4	22.4	22.4	15.8	4.8	17.5	14	44.8	60.4
FBT-02-3	1/4	3/8	23.3	22.4	15.8	4.8	21	14	46.6	62.2
FBT-02-4	1/4	1/2	26.5	30	15.8	4.8	28	14	53	68.6
FBT-03-1	3/8	1/8	23.1	22.4	19.6	7.1	16	17	46.2	61.4
FBT-03-2	3/8	1/4	23.9	22.4	19.6	7.1	17.5	17	47.8	63
FBT-03-3	3/8	3/8	25.3	22.4	19.6	7.1	21	17	50.6	65.8
FBT-03-4	3/8	1/2	28.5	30	19.6	7.1	28	17	57	72.2
FBT-04-1	1/2	1/8	25.9	22.4	23.4	10.4	19	22	51.8	72.2
FBT-04-2	1/2	1/4	25.9	22.4	23.4	10.4	19	22	51.8	72.2
FBT-04-3	1/2	3/8	25.3	22.4	23.4	10.4	21	22	50.6	71
FBT-04-4	1/2	1/2	28.5	30	23.4	10.4	28	22	57	77.4
FBT-06-3	3/4	3/8	28.5	27	24.4	15.7	28	30	56	76.8
FBT-06-4	3/4	1/2	28.5	30	24.4	15.7	28	30	56	76.8
FBT-06-6	3/4	3/4	32.5	33	24.4	15.7	32	30	65	85.8
FBT-08-6	1"	3/4	35	35	31.7	22.4	34.5	38	70	95.4

Sve dimenzije su u milimetrima osim ako nije drugačije navedeno, samo za referencu podložne promjenama.
