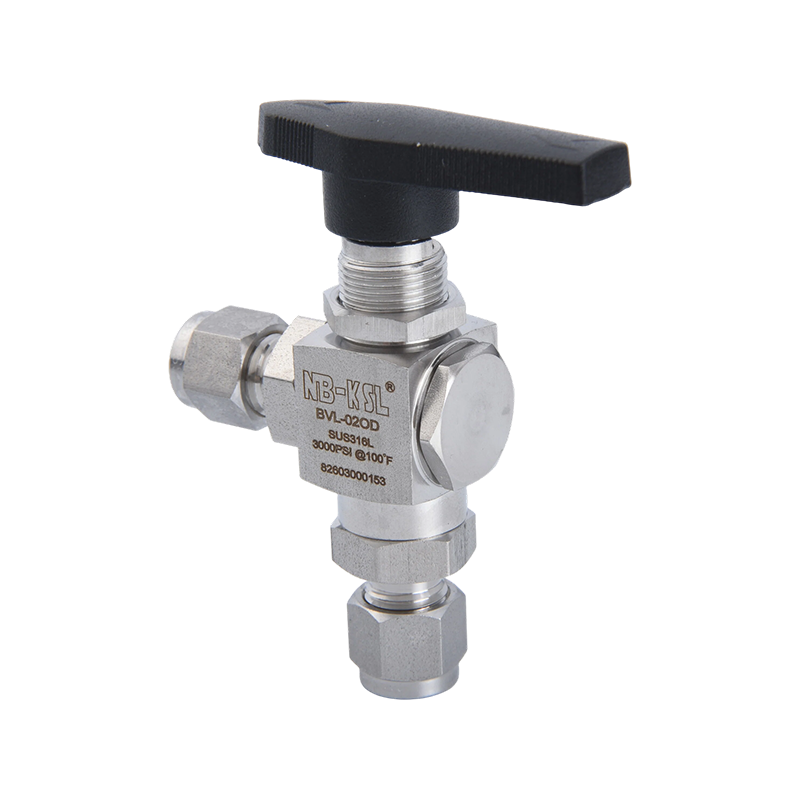

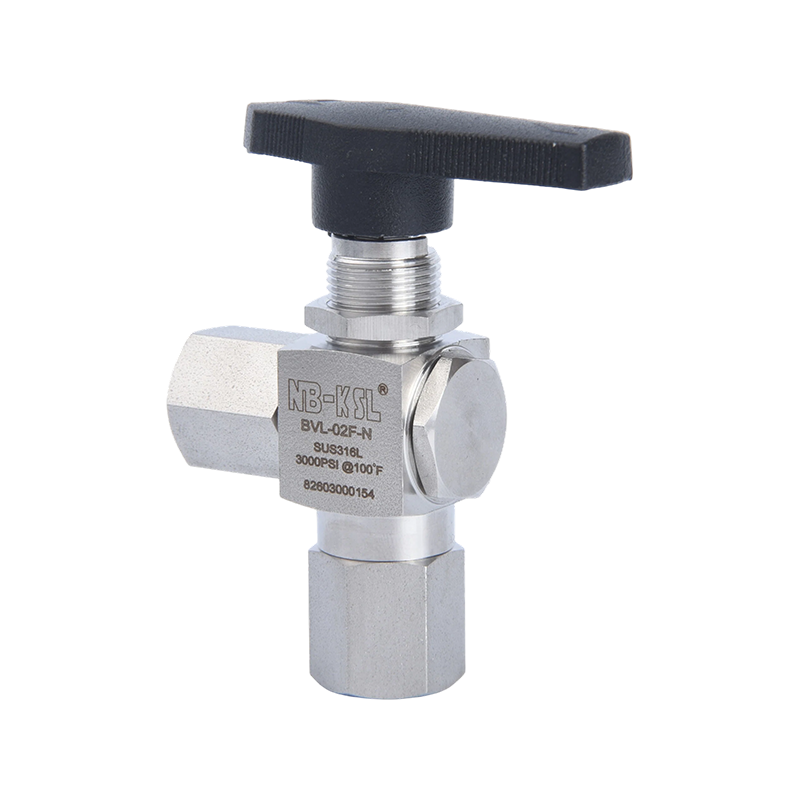

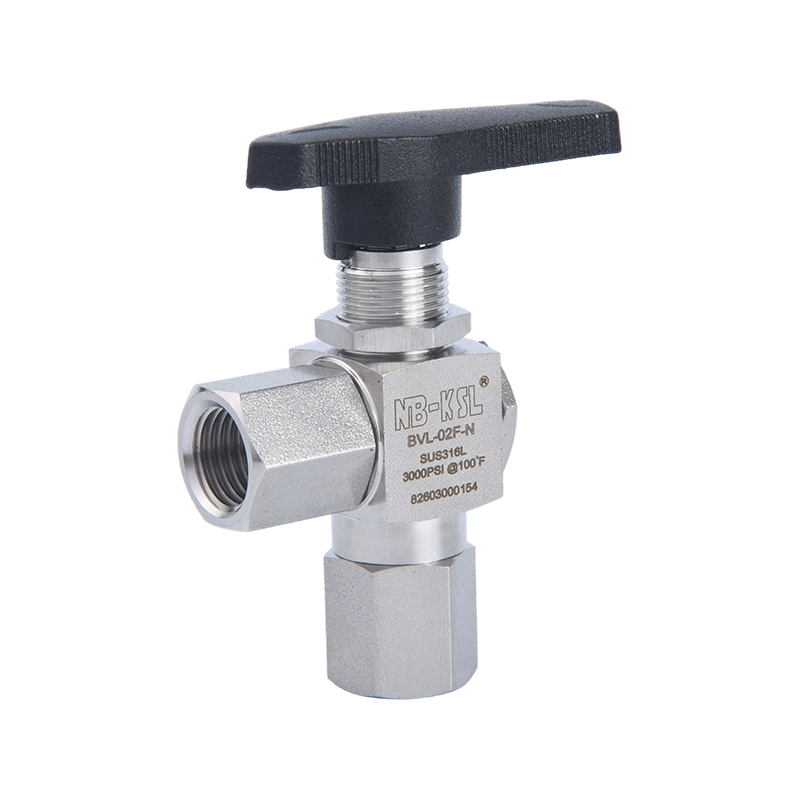

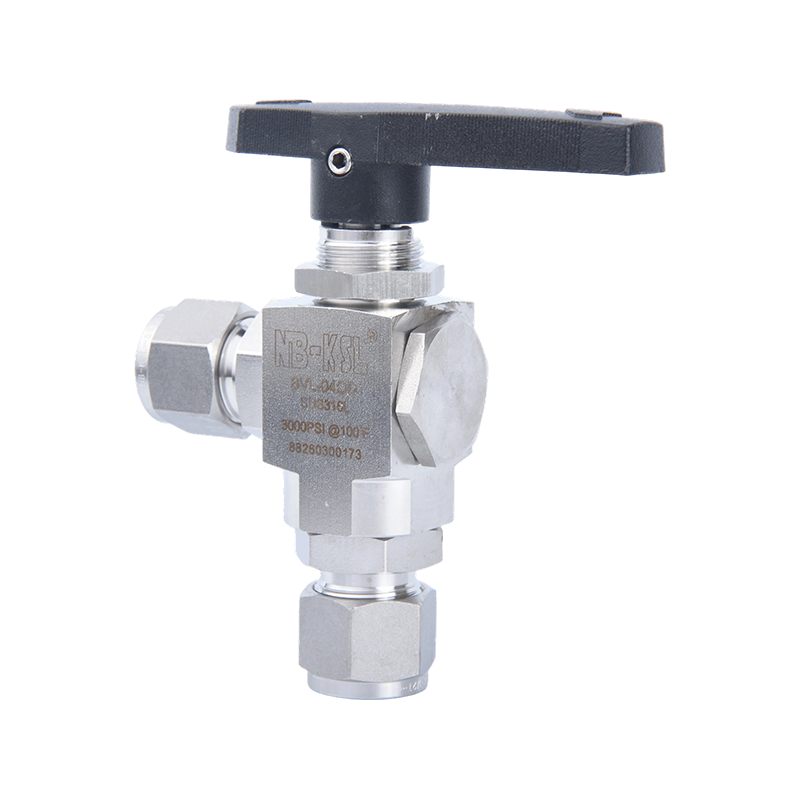

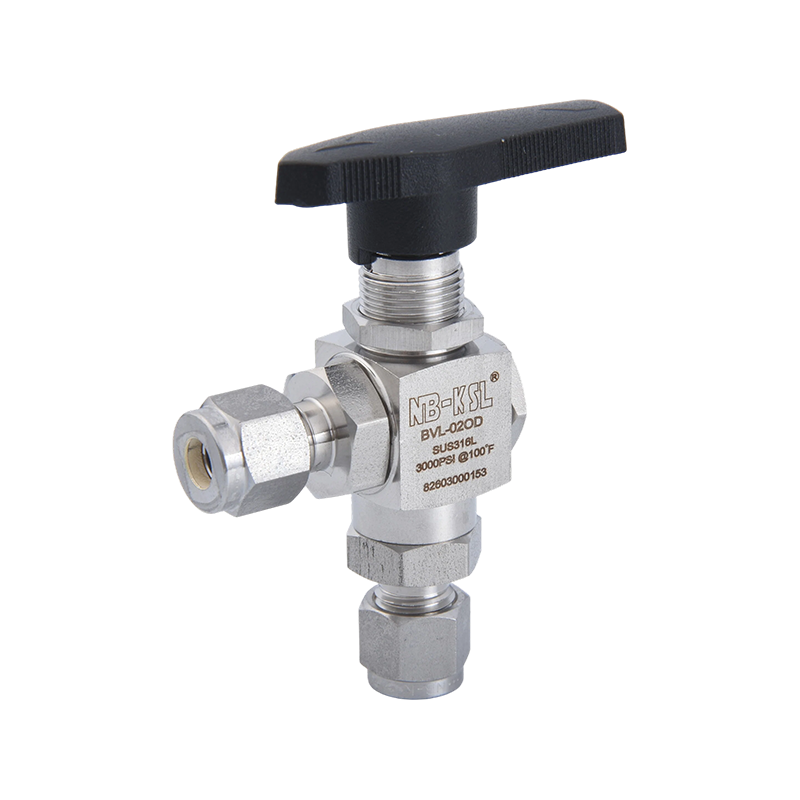

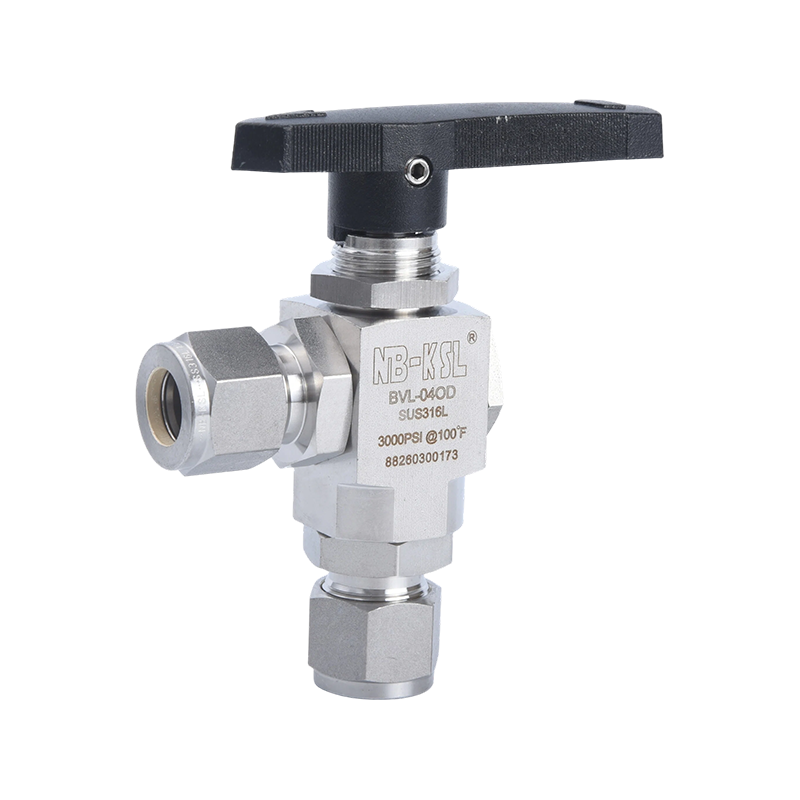

Pravokutni ventili od nehrđajućeg čelika 316L BV

Ovi se ventili prvenstveno koriste za regulaciju, distribuciju ili prekid protoka tekućih i plinovitih medija. Pravokutni ventili i trosmjerni ventili tipa BV, sa svojim jedinstvenim dizajnom putanje fluida, omogućuju fleksibilnije rasporede cjevovodnog sustava, kompaktnije prostore za ugradnju te jednostavan i praktičan rad. Tijelo ventila je iznutra precizno strojno obrađeno kako bi se osigurao minimalan gubitak tlaka tijekom protoka tekućine. Pravokutni ventil tipa BV ima zavoj od 90° u prolazu tekućine. Ovaj kompaktni dizajn nudi iznimnu fleksibilnost instalacije u okruženjima s ograničenim prostorom ili složenim rasporedom cjevovoda, učinkovito štedeći prostor za ugradnju i smanjujući opterećenje cjevovoda. Obje vrste ventila koriste aerodinamični dizajn unutarnje strukture, s tijesnim pristajanjem između sjedišta ventila i jezgre ventila, smanjujući gubitak tlaka tijekom protoka tekućine. Ovo također optimizira hidrodinamičke performanse, smanjuje mrtve zone i nakupljanje tekućine i osigurava učinkovitu i stabilnu kontrolu protoka.

  • Opis
  • Kontaktirajte nas

Izravni kuglasti ventil

Specifikacije

A

B

D1 unutarnja rupa kroz rupu

C

D

E

F

BV-01OD

1/8LOK

63

31

2.4

50

47

5

14

BV-02OD

1/4LOK

66.4

31

5

50

47

5

14

BV-03OD

3/8LOK

70.5

31

5

50

47

5

14

BV-04OD

1/2LOK

86

40

10

84

62

5

19

BV-06OD Malo tijelo

3/4LOK

91

46.4

10

84

62

5

19

BV-08OD

1"LOK

115.5

61.5

14

81

81

6

27

BV-3OD

3mmLOK

63

31

2.4

50

47

5

14

BV-4OD

4mmLOK

63

31

3

50

47

5

14

BV-6OD

6mmLOK

66.4

31

5

50

47

5

14

BV-8OD

8mmLOK

68.4

31

5

50

47

5

14

BV-10OD

10 mmLOK

70.5

31

5

50

47

5

14

BV-12OD

12mmLOK

86

40

10

84

62

5

19

BV-14OD

14mmLOK

85

40

10

84

62

5

19

BV-16OD

16mmLOK

85

40

10

84

62

5

19

BV-18OD

18mmLOK

91

46.4

10

84

62

5

19

BV-20OD

20 mmLOK

106.8

61.5

14

81

81

6

27

BV-22OD

22mmLOK

106.8

61.5

14

81

81

6

27

BV-25OD

25mmLOK

115.5

61.5

14

81

81

6

27

Izravni kuglasti ventil

NPT/PT

A

B

D1 unutarnja rupa kroz rupu

C

D

E

F

BV-01F

1/8

46

/

5

50

47

5

14

BV-02F

1/4

54

/

5

50

47

5

14

BV-03F

3/8

64

1

10

84

62

5

19

BV-04F

1/2

66

1

10

84

62

5

19

BV-06F

3/4

87

1

14

81

81

6

27

BV-08F

1"

109.5

1

14

81

81

6

27
