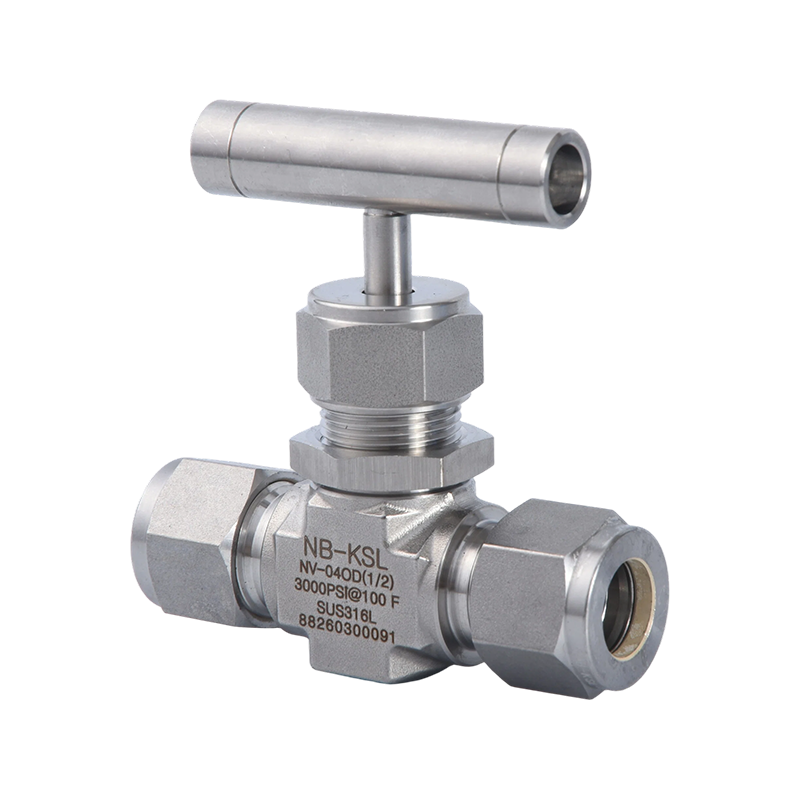

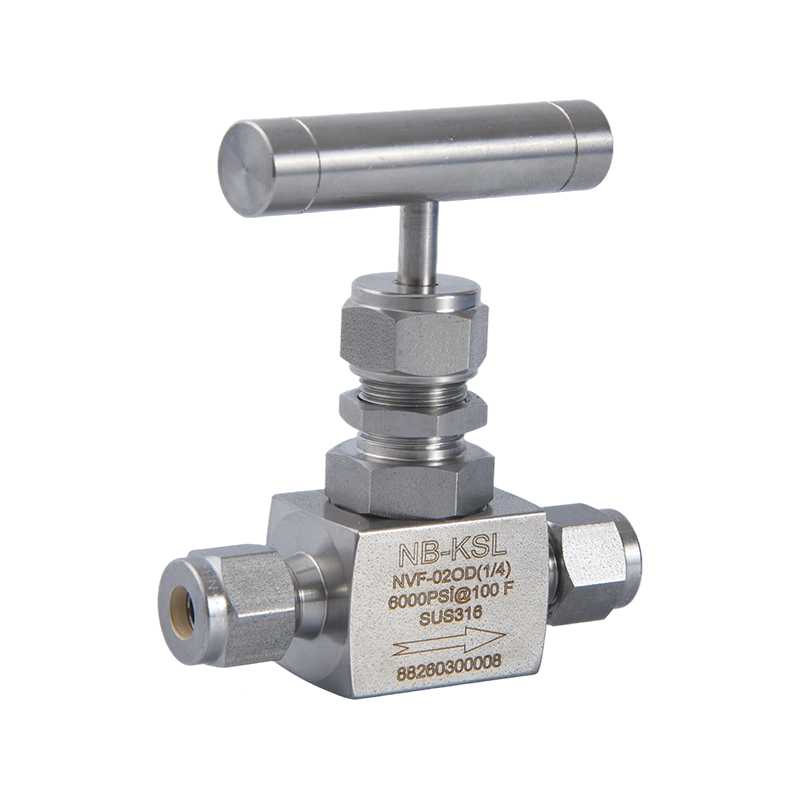

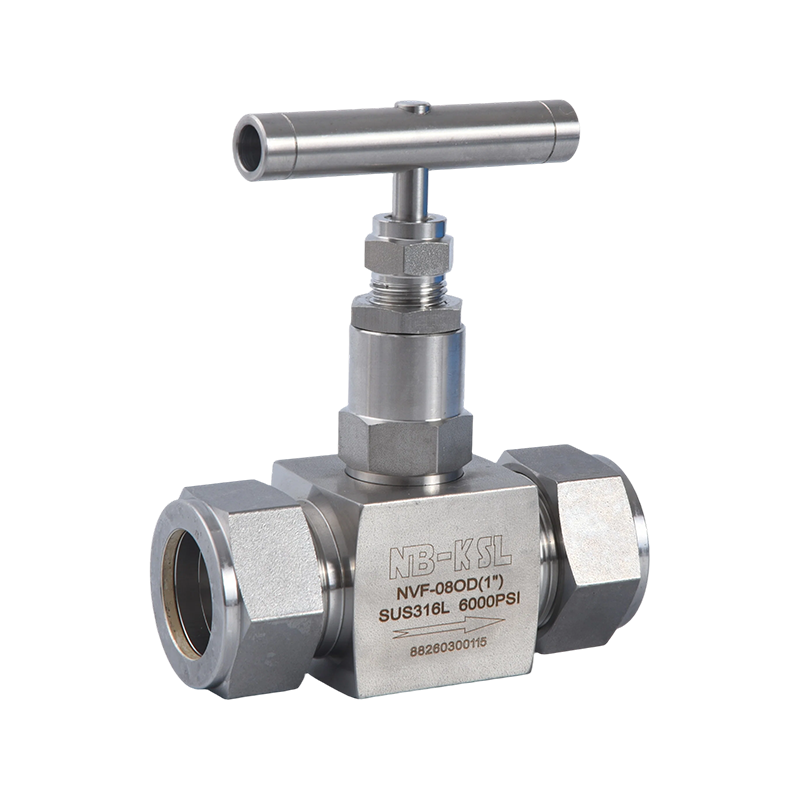

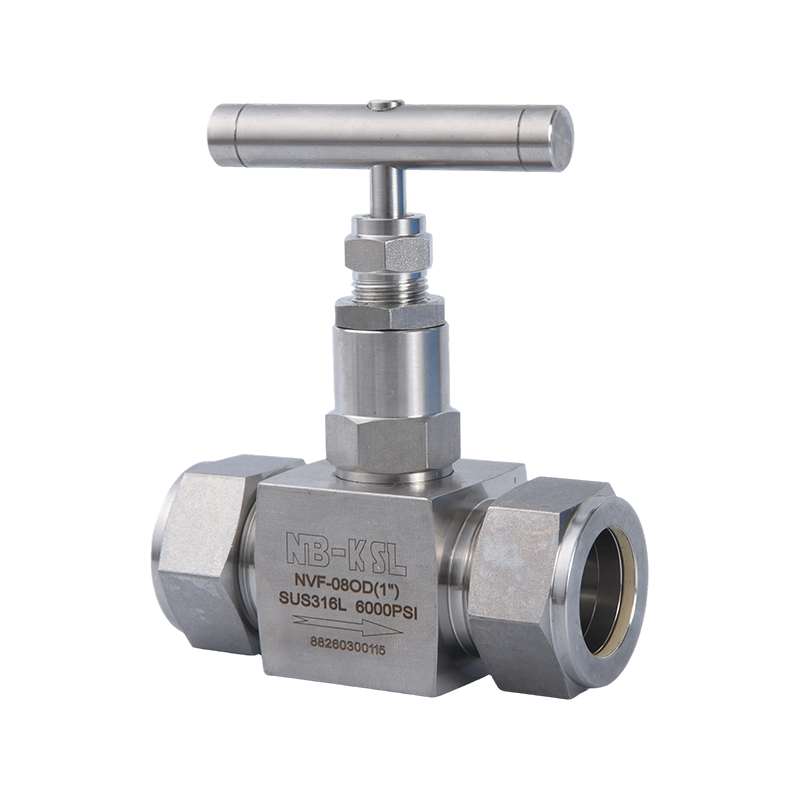

Igličasti ventili s poklopcem od nehrđajućeg čelika 316L

Dom / Proizvodi / Igličasti ventili od nehrđajućeg čelika / Igličasti ventili s poklopcem od nehrđajućeg čelika 316L

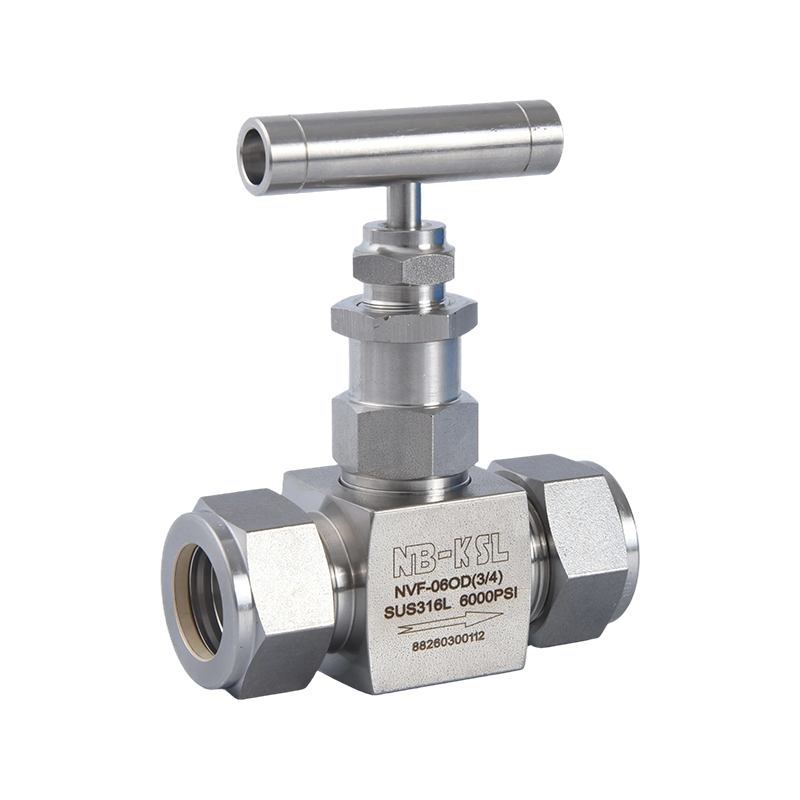

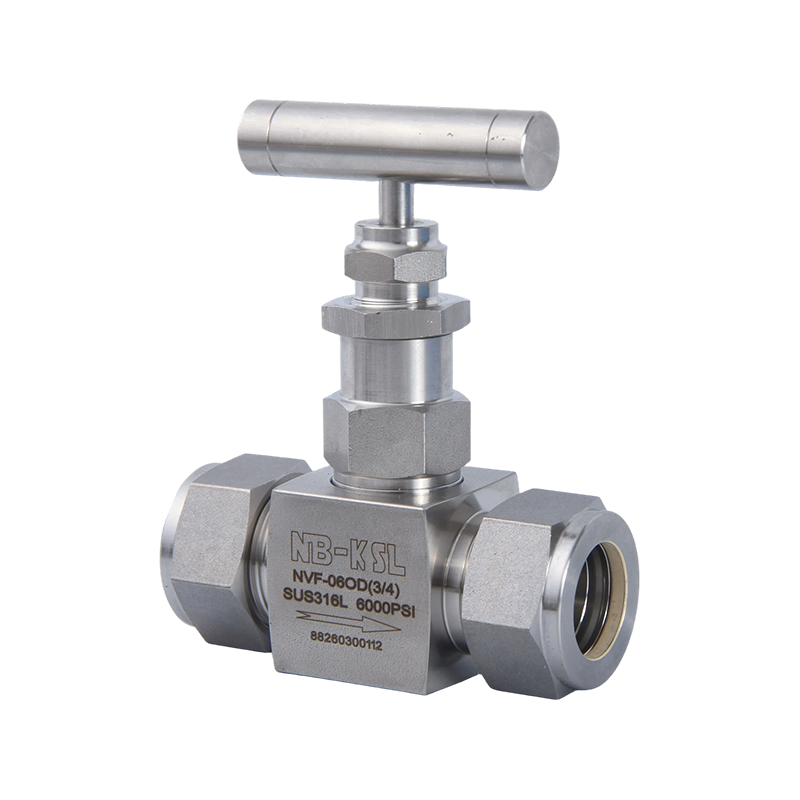

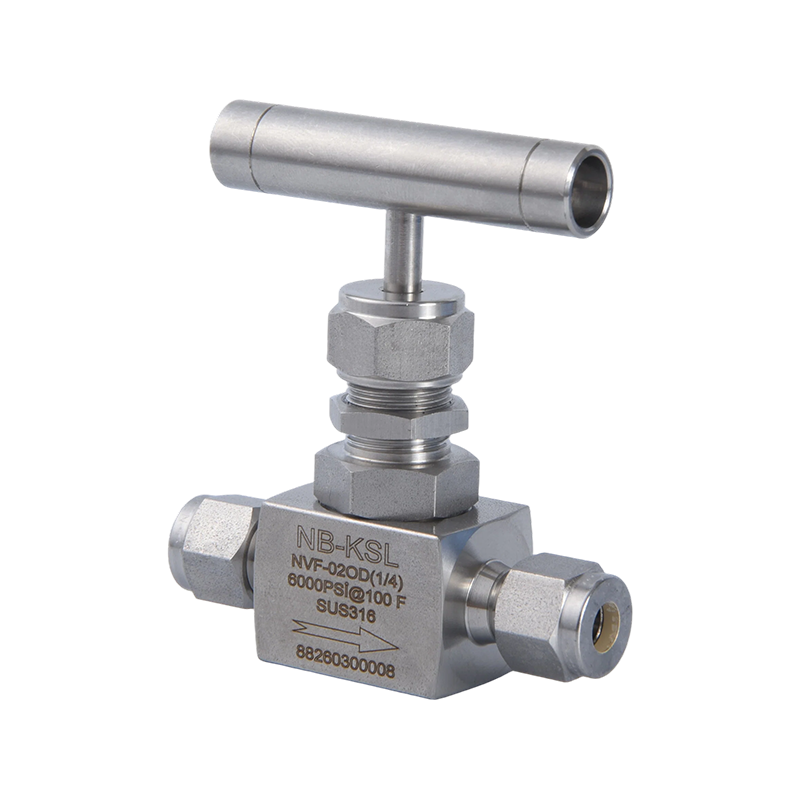

Igličasti ventili s poklopcem od nehrđajućeg čelika 316L

Značajke
Radni pritisak do 10.000 psig (689 bara).
Temperaturna vrijednost od -65 F do 450 ° F (-54 ℃ do 232 ° C) sa standardnim PTFE pakiranjem i do 1200 F (648 ° ℃) s dodatnim Grafoil pakiranjem.
Materijal kućišta dostupan je od 316SS, ugljičnog čelika i legure 400 (Monel).
Radni pritisak do 10.000 psig (689 bara).
100% tvornički testirano.

  • Opis
  • Kontaktirajte nas

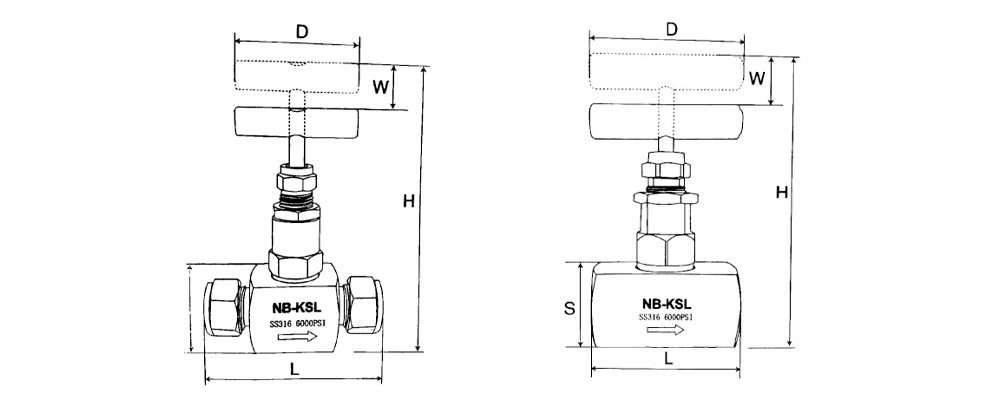

NVF Kućište konektor Pin Tablica dimenzija ventila

Model narudžbe

Veličina

D

D1

L

H

S

W

NVF-02OD

1/4LOK

55

3

65

74

22

4

NVF-03OD

3/8LOK

55

5

65

74

22

4

NVF-04OD

1/2LOK

55

6

77

96

28

5

NVF-06OD

3/4LOK

55

7

77

96

28

5

NVF-08OD

1"LOK

75

10

96

119

40

7

NVF-6OD

6mmLOK

55

3

65

74

22

4

NVF-8OD

8mmLOK

55

4

65

74

22

4

NVF-10OD

10 mmLOK

55

5

65

74

22

4

NVF-12OD

12 mmLOK

55

6

77

96

28

5

NVF-14OD

14 mmLOK

55

7

77

96

28

5

NVF-16OD

16mmLOK

55

7

77

96

28

5

NVF-18OD

18mmLOK

55

7

77

96

28

5

NVF-20OD

20 mmLOK

75

10

92

117

38

7

NVF-22OD

22mmLOK

75

10

92

117

38

7

NVF-25OD

25mmLOK

75

10

96

119

40

7

NVF Tablica dimenzija igličastog ventila s navojnim priključkom

Model narudžbe

P

D

D1

L

H

S

W

NVF-02F

1/4

55

5

55

74

22

4

NVF-02M

1/4

55

5

55

74

22

4

NVF-03F

3/8

55

5

55

74

22

4

NVF-03M

3/8

55

5

55

74

22

4

NVF-04F

1/2

55

6

65

96

28

5

NVF-04M

1/2

55

6

65

96

28

5

NVF-06F

3/4

75

10

71

117

38

7

NVF-08F

1"

75

10

71

119

40

7


Tablica vanjskih dimenzija NVF vijčanog igličastog ventila

Model narudžbe

P

D

D1

L

H

S

W

NVF-10W

10 mm

55

5

108

74

22

4

NVF-12W

12mm

55

6

122

96

28

5

NVF-14W

14mm

55

6

122

96

28

5

Gore navedeni podaci o veličini služe samo za referencu. O svim promjenama neće se posebno obavijestiti. Ako specifikacije nisu navedene, obratite se tvornici za prilagodbu.
