Konektor s ravnim unutarnjim i vanjskim navojem od nehrđajućeg čelika 316L

Name: Konektor s ravnim unutarnjim i vanjskim navojem od nehrđajućeg čelika 316L
Rating: 5 (99 reviews)

Ova armatura je precizni dodatak koji se koristi za promjenu tipova spojeva u sustavima cjevovoda. Proizvod ima linearnu cjelokupnu strukturu s kontinuiranim unutarnjim kanalom protoka. Spojni kraj ima asimetričan dizajn s unutarnjim navojem na jednom kraju i vanjskim navojem na drugom kraju. Njegova temeljna funkcija je pretvorba sučelja i pravolinijska veza. Prvenstveno se koristi za spajanje cijevnih spojnica, ventila ili opreme s istim nazivnim promjerom, ali različitim vrstama sučelja. Ovaj fiting je ključni prijelazni element kada je potrebno spojiti otvor ventila s vanjskim navojem na prirubnicu cijevi ili fiting s istim vanjskim navojem, ili kada je potrebno izvući cijev s vanjskim navojem iz T-račve ili koljena s unutarnjim navojem.

Kontaktirajte nas

PREV：Konektor s dvostrukim vanjskim navojem od nehrđajućeg čelika 316L DALJE：Dvostruki unutarnji zubi ravni

Opis
Kontaktirajte nas

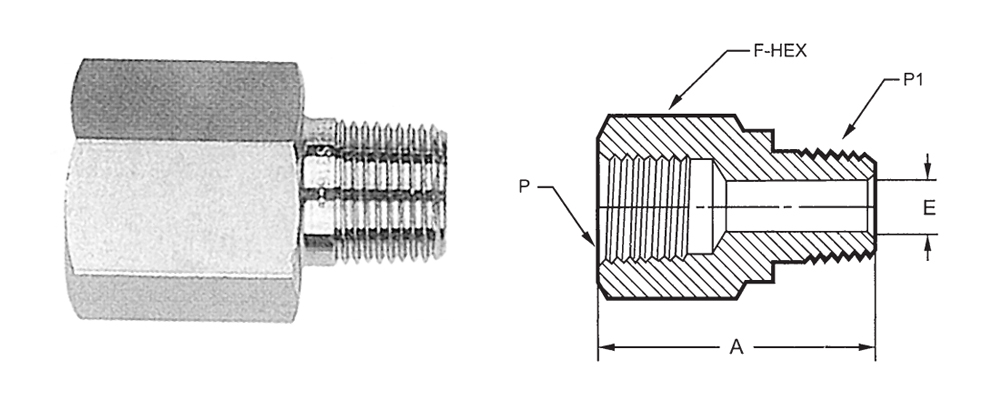

REDUKCIJSKI ADAPTER

P MUŠKI PT/NPT VEL	P1 MUŠKI PT/NPT VEL	KATALOG BROJ	A	E MIN OTVARANJE	F HEX RAVNI
1/8	1/8	RA-01-01	27.7	4.8	14
1/4	1/8	RA-02-01	32	4.8	19
1/4	1/4	RA-02-02	35.6	7.1	19
3/8	1/8	RA-03-01	33.8	4.8	22
3/8	1/4	RA-03-02	38.1	7.1	22
3/8	3/8	RA-03-03	38.1	9.5	22
1/2	1/8	RA-04-01	40.1	4.8	27
1/2	1/4	RA-04-02	44.7	7.1	27
1/2	3/8	RA-04-03	44.7	9.6	27
1/2	1/2	RA-04-04	49.3	11.9	27
3/4	1/4	RA-06-02	46.2	7.1	32
3/4	3/8	RA-06-03	46.2	9.6	32
3/4	1/2	RA-06-04	51.3	11.9	32
1"	1/4	RA-08-02	49.8	7.1	41
1"	3/8	RA-08-03	49.8	9.6	41
1"	1/2	RA-08-04	54.9	11.9	41
1"	3/4	RA-08-06	55.1	15.7	41

Sve dimenzije su u milimetrima. Dimenzije samo kao referenca, podložne promjenama.
