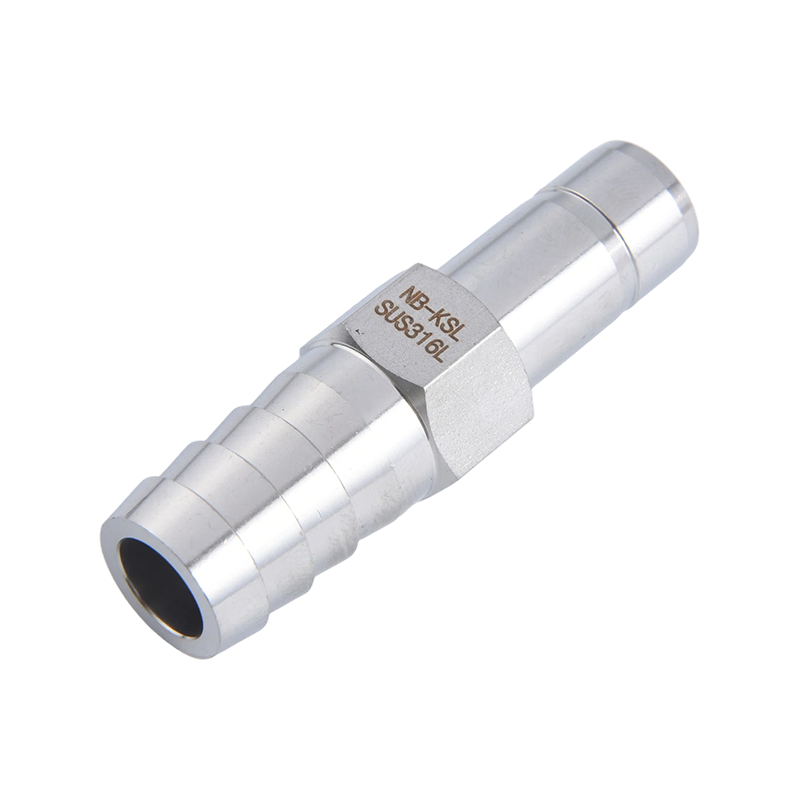

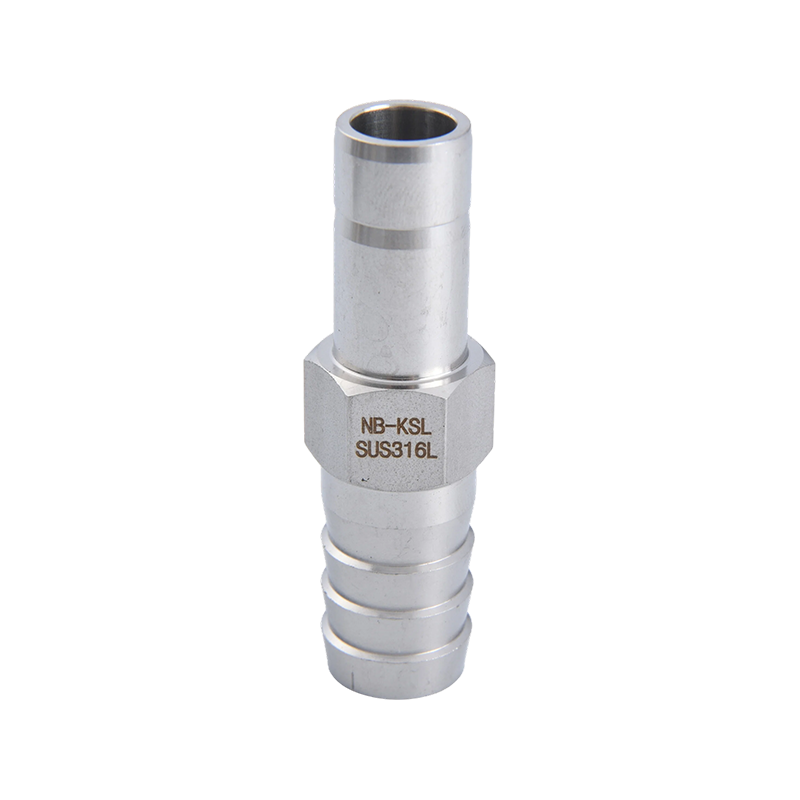

Pagoda konektor za ravne cijevi od nehrđajućeg čelika 316L

Name: Pagoda konektor za ravne cijevi od nehrđajućeg čelika 316L
Rating: 5 (99 reviews)

Ova spojnica se prvenstveno koristi u sustavima ravnih cijevi kao spojna komponenta između dva dijela cijevi, omogućujući brzu montažu, demontažu i održavanje. Njegova jedinstvena struktura, sa stepenastim dizajnom u obliku pagode, omogućuje ravnomjernu raspodjelu naprezanja pod pritiskom, vibracijama i promjenama temperature, smanjujući rizik od curenja cijevi i trošenja. Struktura u obliku pagode glavni je koncept dizajna ovog priključka. Višeslojni dizajn izbočine povećava kontaktnu površinu između spojnice i cijevi, povećavajući mehaničku stabilnost; stepenasta struktura ravnomjerno raspoređuje unutarnji pritisak i sile vibracija, smanjujući rizik od kvara uslijed zamora; a dizajn u obliku pagode olakšava kontakt brtvljenja u više točaka, poboljšavajući ukupnu učinkovitost brtvljenja.

Kontaktirajte nas

PREV：No previous product DALJE：316L nehrđajući čelik Card sleeve pagoda konektor

Opis
Kontaktirajte nas

PRIKLJUČAK ZA CRIJEVO

Spaja frakcijsku cijev na cijev

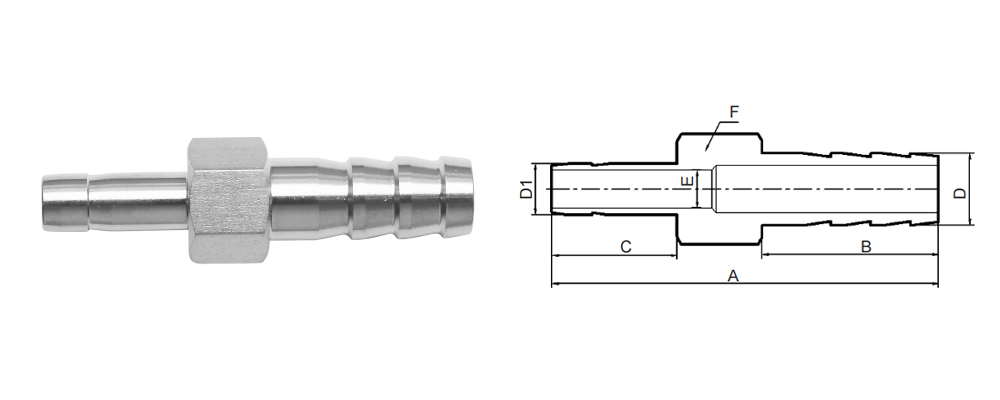

	KATALOG BROJ	A	B	C	E	D	D1	F
1/4-4 mm	PJT-02-4	41.4	15	15.7	2.5	4.80	6.35	12
1/4-6 mm	PJT-02-6	46.5	20.1	15.7	4.8	7.27	6.35	12
1/4-8 mm	PJT-02-8	46.5	22.1	15.7	4.8	9	6.35	12
1/4-10 mm	PJT-02-10	50.3	22.1	15.7	4.8	11.9	6.35	14
3/8-8 mm	PJT-03-8	49.3	22.1	17.6	6	9	9.52	12
3/8-10 mm	PJT-03-10	50.3	22.1	17.6	6	11.9	9.52	14
3/8-12 mm	PJT-03-12	52.1	23.8	17.6	7.1	14.5	9.52	16
1/2-8 mm	PJT-04-8	55.9	22.1	23.2	6	9	12.7	14
1/2-10 mm	PJT-04-10	55.9	22.1	23.2	8	11.9	12.70	14
1/2-12 mm	PJT-04-12	57.7	23.8	23.2	9.5	14.5	12.7	16
6mm-6mm	PJT-6-6	46.5	20.1	15.7	4.8	7.27	6	12
8mm-8mm	PJT-8-8	46.5	22.1	16.5	6	9	8	12
3/8-3/8	PJT-03-03	50.3	22.1	17.6	7.1	11.43	9.52	14
1/2-1/2	PJT-04-04	57.7	23.8	23.2	9.5	15.12	12.7	16
3/4-3/4	PJT-06-06	62	26.7	24.6	15	22.72	19.05	27
